Polyurethane Insulated Steel Structure Cold Chain Warehouse
Factory-prefabricated steel structure cold storage warehouses for industrial refrigeration (-40°C to 15°C adjustable). Integrated with 100/120/150mm thick PU/PIR sandwich panels (λ=0.022W/m·K), designed for efficient cold chain logistics, food processing, and pharmaceutical storage.
+8619063521259
sales02@bksteelstrcture.com
Contact us

Contact with Us For

Any Advice

Need help? Talk to an expert

+8619063521259

Product Details

Products

Product Description

Product Overview

Factory-prefabricated steel structure cold storage warehouses for industrial refrigeration (-40°C to 15°C adjustable). Integrated with 100/120/150mm thick PU/PIR sandwich panels (λ=0.022W/m·K), designed for efficient cold chain logistics, food processing, and pharmaceutical storage.

Core Advantages

      √ Superior Thermal Insulation

  • High-density PU foam core (≥42kg/m³) ensures ultra-low thermal conductivity (<0.024W/m·K)

  • Continuous polyurethane injection eliminates cold bridges, maintaining stable -20°C environment

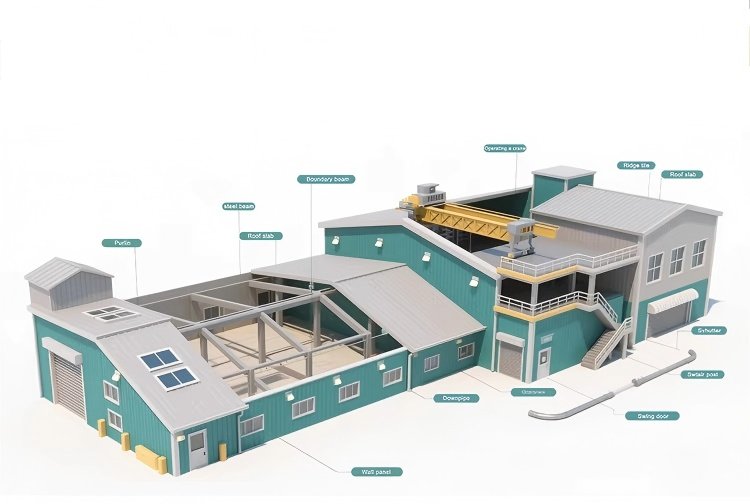

    √ Optimized Structural Design

  • Clear-span steel frames (up to 40m width) enable column-free interiors

  • Sloped roof (5-10°) facilitates quick snow/rain runoff

  • Reinforced loading zones support forklift operations
    √ Rapid Installation & Mobility

  • Bolt-connected components reduce on-site work by 60%

  • Modular design allows future expansion or relocation
    √ Smart Loading Solutions

  • Adjustable dock levelers (optional) for seamless truck-to-warehouse transfer

  • Extra-wide doors (up to 3.5m) accommodate pallet jacks

Polyurethane Insulated Steel Structure Cold Chain Warehouse
End-to-End Customization
Full customization from design to production: Simply provide dimensions, height, color preferences (e.g. RAL codes), steel grade (Q235B/Q355B), and usage (factory/warehouse/logistics center). Our engineering team will:
(1)Deliver 3D conceptual designs within 48 hours
(2) Calculate site-specific wind pressure (resists up to 60m/s), snow load (max. 150kg/m²), seismic forces (compliant with EN 1998/IBC)
(3) Provide structural reports meeting local codes + cost-optimized quotation
ParameterSpecification
StructureGalvanized Steel Frame (Q235B/Q355B)
PanelPU/PIR Sandwich Panel (Thickness: 100-200mm)
Temp Range-40°C ~ +15°C (Customizable)
Fire RatingB1 (GB Standard)
Custom SizesFrom 500m² to 50,000m²
Polyurethane Insulated Steel Structure Cold Chain Warehouse

Safety & Economy Unified
• Structural Integrity: CE (EN 1090) & AISC certified steel with FEM analysis ensuring zero failure under extreme conditions
• Cost Savings: Prefabricated components reduce construction costs by 30%, energy-efficient cladding cuts HVAC expenses 20%
• Eco-Friendly: 100% recyclable materials with 95% end-of-life recycle rate

Polyurethane Insulated Steel Structure Cold Chain Warehouse

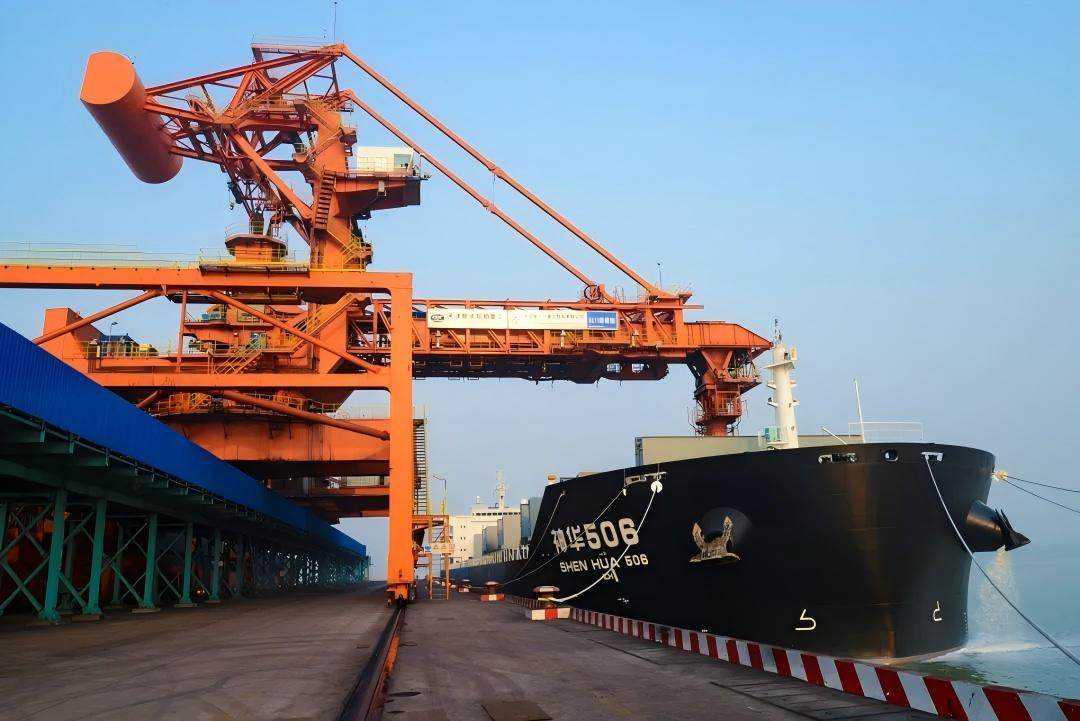

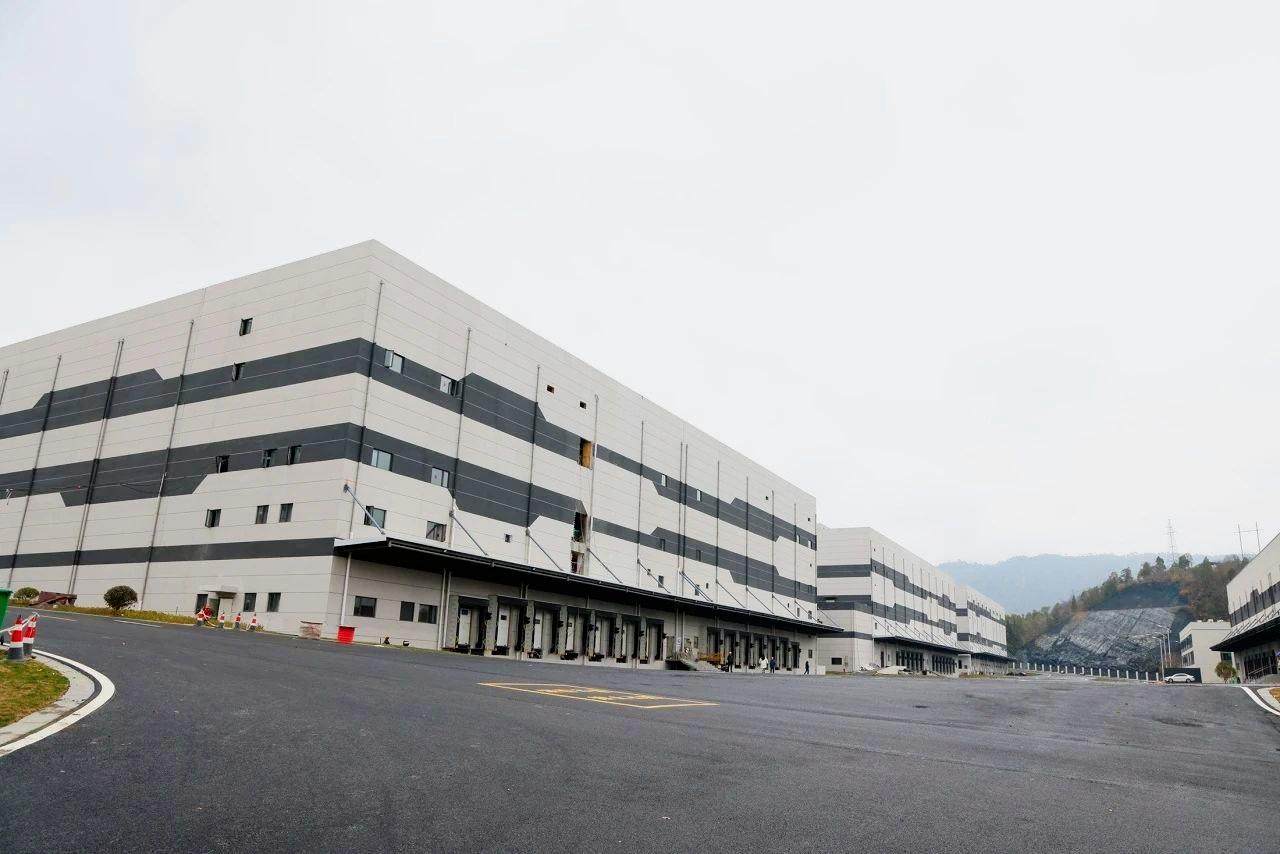

Global Project Portfolio
Serving 64 countries including:
√ China-Europe Railway Express Urumqi Assembly Center Cold Chain Logistics Project
√ Chongren High-Tech Zone Cold Chain Logistics Project
√ Taicang Port Integrated Hub (Multimodal Transport) Logistics Park Phase II
√ Bosch Asia-Pacific Logistics Center (Taicang Port Logistics Park)

Polyurethane Insulated Steel Structure Cold Chain Warehouse

Manufacturing Excellence
• 20-year specialist with 5,000-ton monthly capacity
• 5 automated H-beam production lines (CNC plasma cutting + robotic welding)
• Certifications: ISO 9001, ISO 14001, AWS D1.1



Polyurethane Insulated Steel Structure Cold Chain Warehouse


Packaging & Shipping


Professional Packaging System (ISO 10355 Compliant)

1. Tiered Protective Packaging

Component TypePackaging MethodProtection Grade
Beams/ColumnsSteel strapping + VCI film + corner guardsIPPC-3
Roof/Wall panelsWooden pallets + PE stretch wrap + scratch-resistant coatingIPPC-2
FastenersGalvanized drums + vacuum bags + desiccantIPPC-1



2. Critical Process Guarantees

  • Anti-Corrosion: VCI vapor corrosion inhibitor applied (MIL-PRF-3420H compliant)

  • Deformation Prevention: Removable braces for over-length components (>12m)

  • Marking System: Lifting points + Center of gravity + ISO 7000 symbols

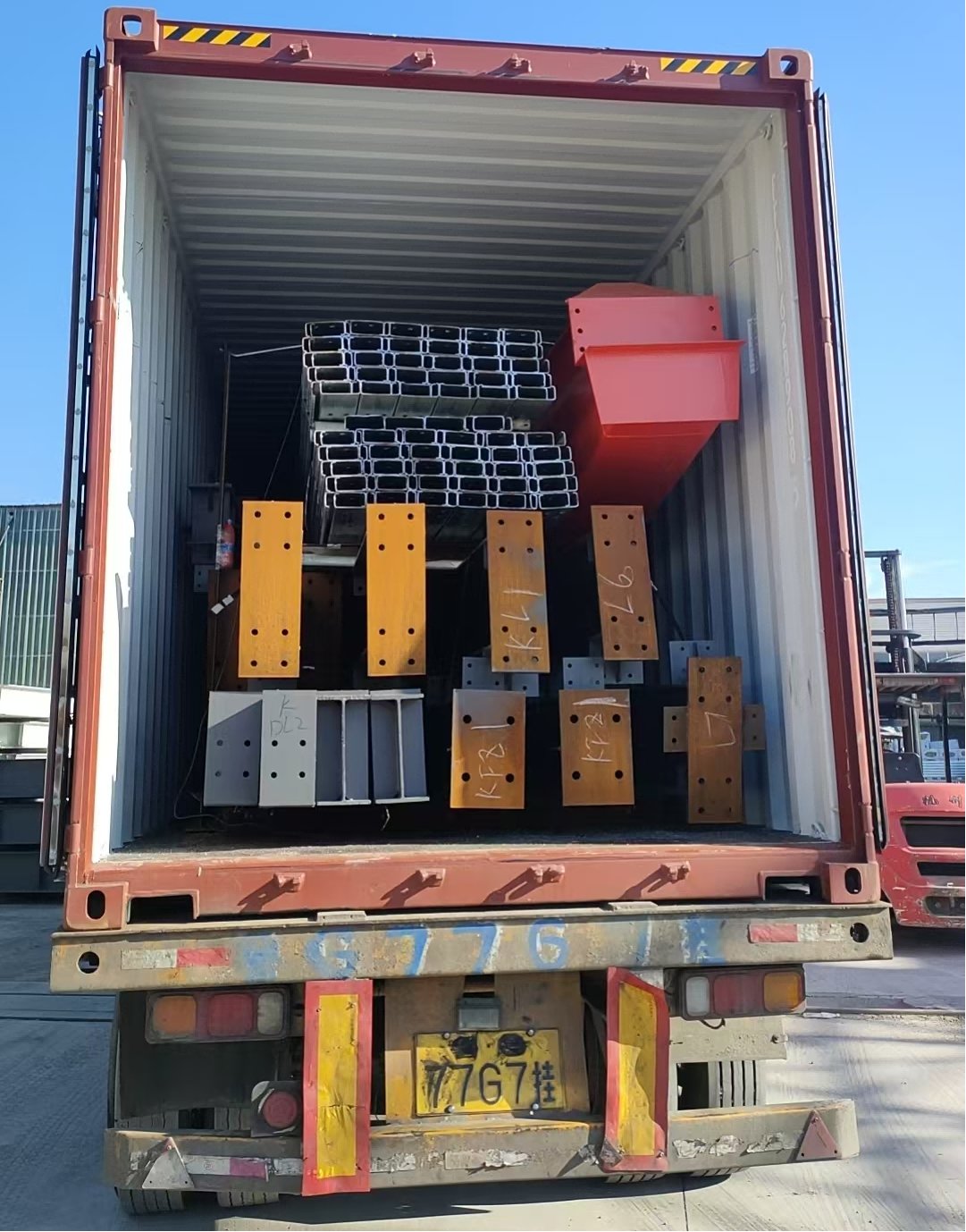

End-to-End Container Shipping Management

Loading Solutions

Container TypeSuitable ComponentsMax Utilization
40ft HQMedium beams, purlins92%
Open Top (OT)Extra-high members (≤5.2m)88%
Flat Rack (FR)Oversized panels (≥3.5m)85%

Polyurethane Insulated Steel Structure Cold Chain Warehouse

Shipment Monitoring

  • Real-time Tracking: IoT humidity/GPS trackers (web access provided)

  • Risk Control: All Risks marine insurance (covers rusting/loading damage)

  • Document Service: Free Packing List, B/L, COO

Global Port ETA Reference

DestinationTransit DaysCustoms Support
EU Base Ports28-35EN10204 3.1 certificates
US West Coast15-22AMS/ISF filing assistance
SE Asia Hubs7-12Local inspection support


Polyurethane Insulated Steel Structure Cold Chain Warehouse

Certificate

Products

  • 重守
  • 资信
  • 质服
  • 诚信经营示范单位
  • 诚信企业家
  • 行业
  • 经理人
  • 立信单位
  • 信用
  • 供应商
  • 未标题-3
  • 2023年12月25日北科营业执照副本
  • beike
  • 2024年3月21日北科新建筑施工企业安全生产许可证_00
  • 2024年3月21日北科新建筑业企业资质证书_00
  • 1
  • 聊城北科新材料科技有限公司-QES(1)(1)(2)-4
  • 聊城北科新材料科技有限公司-QES(1)(1)(2)-2

Factory Display

Products

Factory interior
Workstation operation details
  • 厂区细部3
  • 厂区细部2
  • 厂区细部1
  • 厂区细部6
  • 厂区细部5
  • 厂区细部4
  • 工位作业细部8
  • 工位作业细部7
  • 工位作业细部6
  • 工位作业细部5
  • 工位作业细部4
  • 工位作业细部11
  • 工位作业细部9
  • 工位作业细部10

Packing & Delivery

Products

  • H737982c83cbc4a3f8e6906b878ebb229N
  • H62e7887630294d119fc2199937396643A
  • Hb4dac970519247c98f0e8159444a0b864
  • Hb94675af5325432e9f41c1544074f61ce
  • H8abe21a2bf8c46cbb4ccc0681534a703a
  • H3b722173c2e34ddfa9ba14e9aabe26eaU

FAQ

Products

Q：

Q: What one-stop services and technical support can we provide for overseas steel structure projects?

A：
A: We provide one-stop services for overseas steel structure projects with support from our own physical factory and experienced engineering team. Our service covers technical communication, drawing review, project evaluation, customized solutions, detailing coordination, production planning, fabrication, quality inspection, export packing, shipment coordination, and delivery follow-up. We do not only manufacture steel components. We also help solve technical and execution issues before production, including structural optimization, connection detailing, layout improvement, fabrication feasibility review, and coordination between drawings and manufacturing. With our own factory, we can control quality, lead time, and component consistency more directly, giving overseas buyers stronger confidence in customized production and reliable delivery.
Q：

Q: Why choose us rather than other suppliers?

A：
A: We stand out through our one-stop service system, reliable product quality, and proven overseas project experience. From technical communication, drawing review, and customized solutions to detailing, fabrication, quality inspection, export packing, shipment coordination, and delivery follow-up, we support the whole project process. With our own physical factory, we can control production quality, schedule, and component consistency more directly. Our experienced engineering team helps solve technical and execution issues before production, reducing errors and improving efficiency. We have also participated in overseas energy, bridge, and industrial projects, giving us stronger practical capability in international project delivery and on-site cooperation.
Q：

Q: What products do we supply?

A：
A: We supply a wide range of steel structure products, including steel workshops, warehouses, industrial buildings, bridges, Bailey bridges, grid structures, villas, cold storage buildings, livestock buildings, and other customized steel components. We place strong emphasis on product quality, manufacturing accuracy, and delivery reliability. With our own factory and professional engineering team, we can also provide project-based customized solutions according to drawings, technical requirements, application scenarios, and site conditions, so the products better fit real project needs.
Q：

Q: How can we ensure quality?

A：
A: We ensure quality through strong engineering, factory control, and proven overseas project experience. Our technical team uses PKPM, 3D3S, Midas, SAP2000, Tekla, and BIM for design, detailing, and production coordination, helping solve technical issues before fabrication starts. We have our own manufacturing base of over 200 mu with annual output above 200,000 tons, supported by Grade II general contracting, Grade I steel structure contracting, and certified quality, safety, and environmental systems. We have also delivered overseas projects in the Philippines, Pakistan, Nepal, and Ethiopia, covering power plants, bridges, and industrial buildings, which strengthens our practical ability in fabrication, export delivery, and on-site cooperation.
Q：

Q: Who are we?

A：
A: We are a steel structure company based in Shandong, China, supported by our own factory, professional engineering team, and complete export service system. We focus on overseas steel structure projects and provide one-stop services including technical consultation, drawing review, customized solutions, detailing, fabrication, quality control, export packing, shipment coordination, and delivery support. Our products have been exported to Southeast Asia, the Middle East, North America, Central America, East Asia, and South Asia. With strong manufacturing capacity and project experience, we can provide more reliable quality and delivery. We sincerely welcome overseas buyers and partners to visit our factory for cooperation and project discussion.
