Steel Structures in Coal-Fired Power Plants: Key Roles & Applications

Steel structures are indispensable in modern coal-fired power plants due to their high strength, rapid construction, and adaptability to large spans and heavy loads. They serve as the "skeleton" of the plant, ensuring stability, durability, and operational efficiency.

1. Primary Load-Bearing Structures

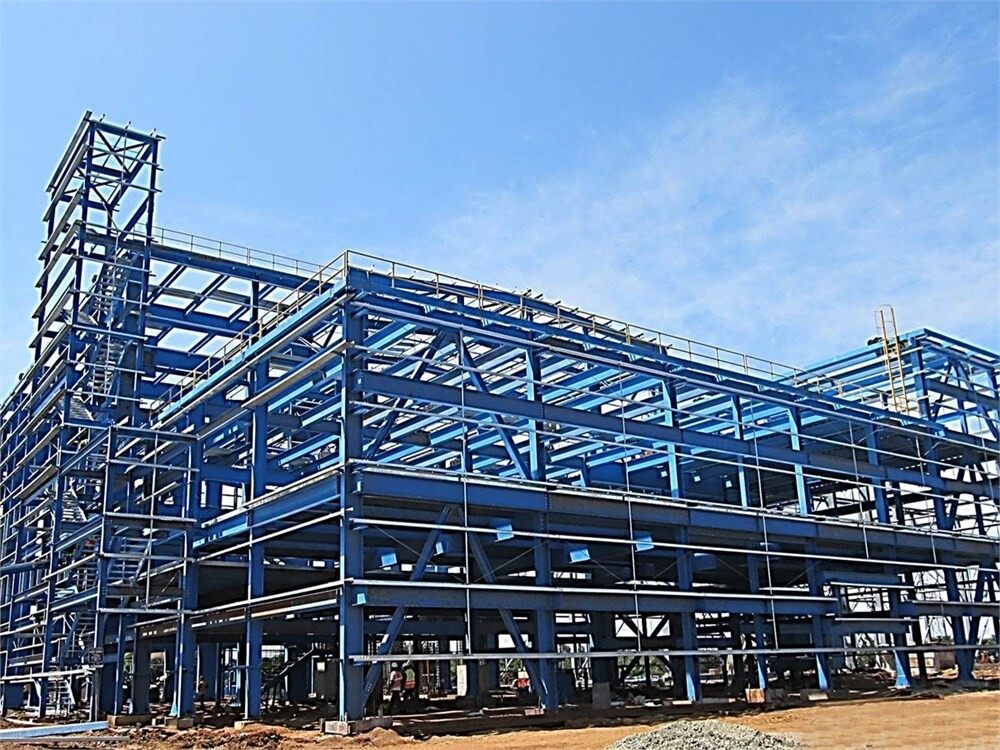

A. Main Powerhouse (Turbine Hall & Boiler House)

• Function:

  • Supports heavy equipment (e.g., turbines, boilers) with column-free spans of 30–50m (using Q345B steel).

  • Reduces foundation load by 20–30% compared to concrete.

• Advantages:

  • Faster construction (modular assembly cuts工期 by 30%).

  • Better seismic performance (ductile steel frames absorb vibrations).

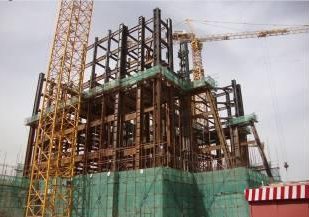

B. Boiler Support Structures

• Material: Fire-resistant steel (e.g., SM490FR) or coatings (intumescent paint) to withstand >500°C near boilers.

• Design: Rigid frames resist dynamic loads from coal combustion.

2. Specialized Components

A. Chimneys & Flue Gas Ducts

• Steel Inner Liners:

  • Titanium-clad steel or fiberglass-reinforced steel resists sulfuric acid corrosion (from SO₂).

  • Modular installation reduces construction time by 50%.

B. Coal Conveyor Bridges

• Long-span trusses (60–100m):

  • Enclosed steel design prevents coal dust explosions.

  • Weathering steel (Q355NH) minimizes maintenance.

3. Auxiliary Facilities

• Steel Platforms & Walkways:

  • Grating floors (anti-slip, corrosion-resistant) for safe maintenance access.

• Coal Storage Domes:

  • Large-span space frames (120m+) eliminate interior columns.

4. Steel vs. Concrete: Critical Advantages

5. Challenges & Solutions

• High Temperatures → Insulation panels or water-cooled walls.

• Corrosion → Hot-dip galvanizing (coastal plants) or aluminum-magnesium coatings.

• Vibration Control → Rubber isolators under turbine foundations.

6. Innovations & Trends

• BIM & Modular Construction:

  • Pre-assembled steel modules (e.g., Shanghai Waigaoqiao Phase III plant) reduce on-site work.

• Advanced Materials:

  • Q690 high-strength steel cuts weight by 15% while maintaining load capacity.

• Smart Monitoring:

  • Embedded sensors track stress/fatigue in real-time.

Conclusion

Steel structures are the backbone of coal-fired power plants, offering unmatched speed, flexibility, and cost-effectiveness—especially for ultra-supercritical units. Future advancements in corrosion-resistant alloys and digital twin technologies will further solidify their dominance.
