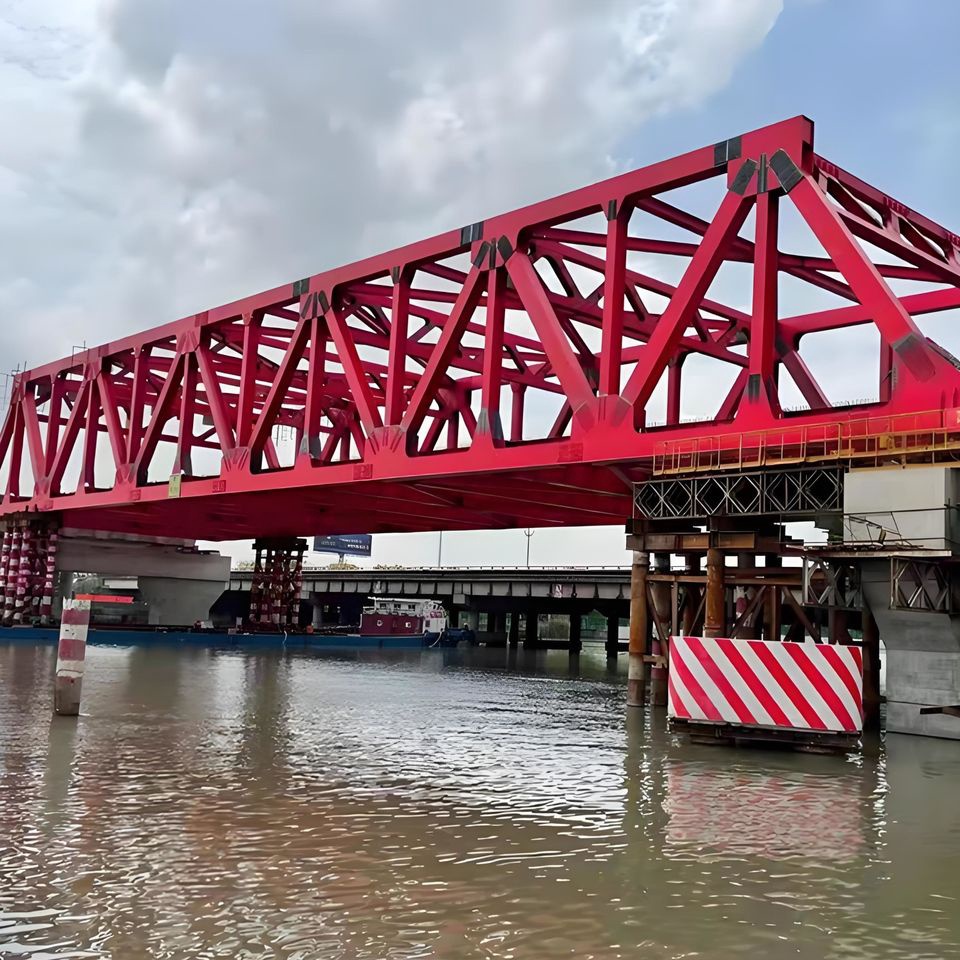

Heavy Duty Bailey Bridge - 12m Single/Double/Triple Truss, DIN/BS Compliance, Corrosion Resistant

Heavy Duty Bailey Bridge - 12m Single/Double/Triple Truss, DIN/BS Compliance, Corrosion Resistant
Our heavy-duty modular Bailey bridge solution is designed for overseas projects that require fast deployment, standardized connection, transport-friendly delivery and reliable temporary or semi-permanent crossing performance. We can help you build a more practical bridge system for emergency access, construction detours, military support, remote-area crossings and temporary logistics routes through modular fabrication, organized export packing and one-stop project support.
+8619063521259
sales02@bksteelstrcture.com
Contact us

Product Details

Products


Bailey Bridge: A Modular Military-Origin Bridge for Rapid Deployment

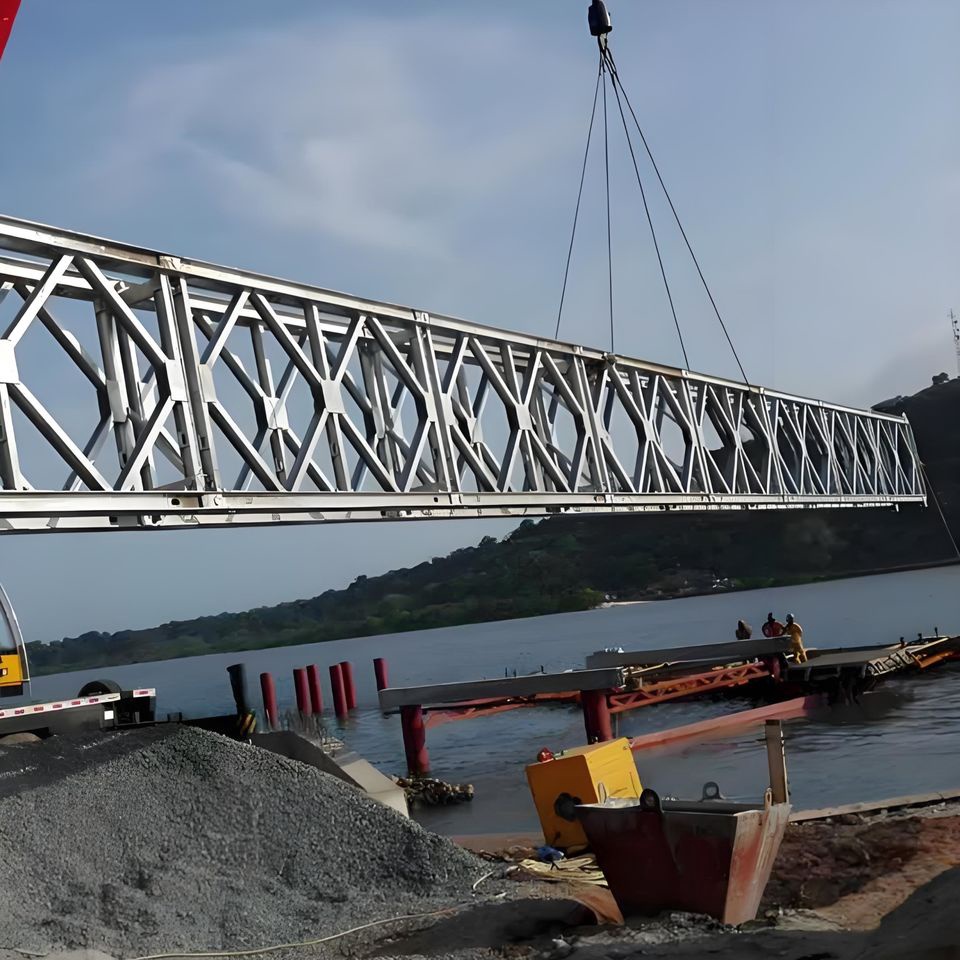

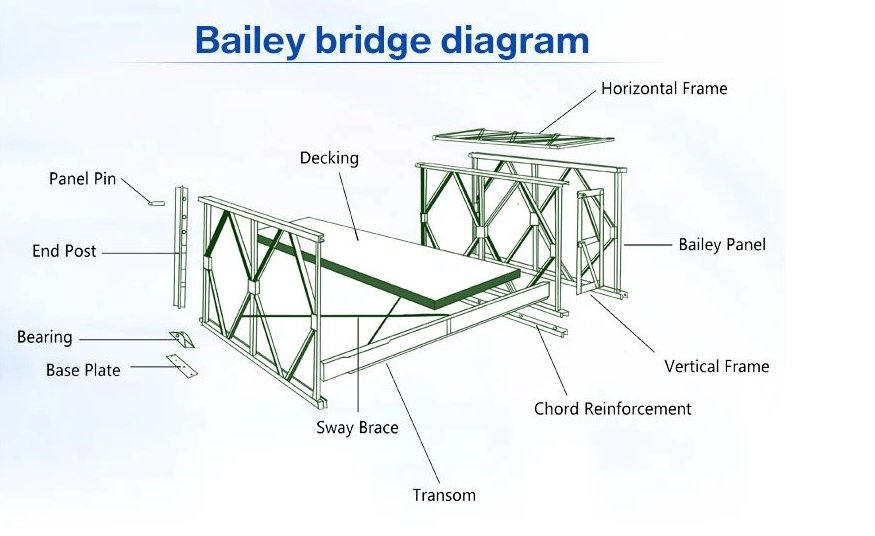

The Bailey Bridge is a portable, prefabricated modular truss bridge designed for quick assembly using standardized components. Originally developed for military use during World War II, it has since become a vital solution for emergency, temporary, and semi-permanent bridging in civilian and military applications.
Product Description
Key Features:
1.Quick Deployment: No heavy
machinery needed; manual assembly possible.
2.Adjustable Length: 10m–60m+ (modular panels allow flexible configurations).
3.Military-Grade Durability: Used by armed forces globally.
4.Cost-Effective: Cheaper than concrete bridges, reusable for decades
Key Specifications
1.Material: Q345B Steel with 550g/m² Hot-Dip Galvanization
2.Span Range: Modular design (3m-100m, extendable)
3.Deck Width: 4.2m (Single Lane) / 7.2m (Double Lane)
4.Load Capacity: 50T (HS20-44 Standard)
5.Installation Time: 5-15 days (with professional team)
6.Lifespan: 30+ years (Salt Spray Test ≥3000 hours)
7.Certifications: ISO 9001, CE, EN1090, MIL-STD-810G
8.Packaging: Seaworthy wooden crates (weatherproof)
Core Features
1.Modular & Rapid Deployment
     Pre-assembled steel panels with bolt-together system (no welding required)
     70% faster installation than traditional bridges
2.Military-Grade Durability
     Meets NATO STANAG 2021 standards for emergency bridges
Withstands extreme conditions:
    Wind: 200 km/h
    Earthquake: 8.0 magnitude
    Temperature: -40°C to 80°C
3. Cost-Effective Solution
   30% lower cost than concrete bridges
    Fully reusable and relocatable
4. Custom Engineering Support
    Free technical drawings for orders >100m
    OEM accepted (custom logos/colors)
Technical Parameters
ComponentSpecification
Steel FrameQ345B, Yield Strength ≥345MPa
Corrosion ProtectionHot-Dip Galvanized (550g/m²)
Decking SurfaceAnti-slip steel grid (5mm thick)
Connection SystemConnection System
Maximum Span100m (with intermediate supports)
Applications
1.Military troop mobility and logistics

2. Emergency disaster relief bridges

3.Temporary access for mining/construction

4.Infrastructure detours during repairs
Competitive Advantages
FeatureOur BridgeConcrete Bridge
Installation Time5-15 days3-6 months
RelocationReusableFixed
Maintenance Cost$500/year$5,000+/year
Lifespan30+ years50 years
Specification
Table 1: Material Specifications Comparison
ComponentOur Standard SpecificationIndustry StandardAdvantage
Steel GradeQ345B (Yield ≥345MPa)Q235 (Yield ≥235MPa)47% higher strength
Galvanization550g/m² HDG275g/m² HDG2x corrosion protection
BoltsGrade 8.8Grade 4.8100% higher shear strength
Decking5mm anti-slip steel3mm flat steel67% more durable
Table 2: Performance Metrics
ParameterOur BridgeCompetitor ACompetitor B
Max Span100m75m60m
Assembly Speed15m/day8m/day5m/day
Maintenance Cycle12 months6 months3 months
Table 3: Climate Adaptability
ConditionPerformance Rating (1-5)Notes
Extreme Heat♦♦♦♦♦ (50°C+)No deformation
Arctic Cold♦♦♦♦◊ (-40°C)Special lubricants used
Coastal Salt Air♦♦♦♦♦550g/m² zinc protection
Heavy Rainfall♦♦♦♦♦1.5° deck slope
Table 4: Order Customization Options
OptionChoices AvailableLead Time Impact
Length3m-100m (1m increments)+0 days
Width4.2m or 7.2m+0 days
ColorRAL code selection+3 days
Loading20T-100T configurations+5 days
AccessoriesRamps, lighting kits+2-7 days

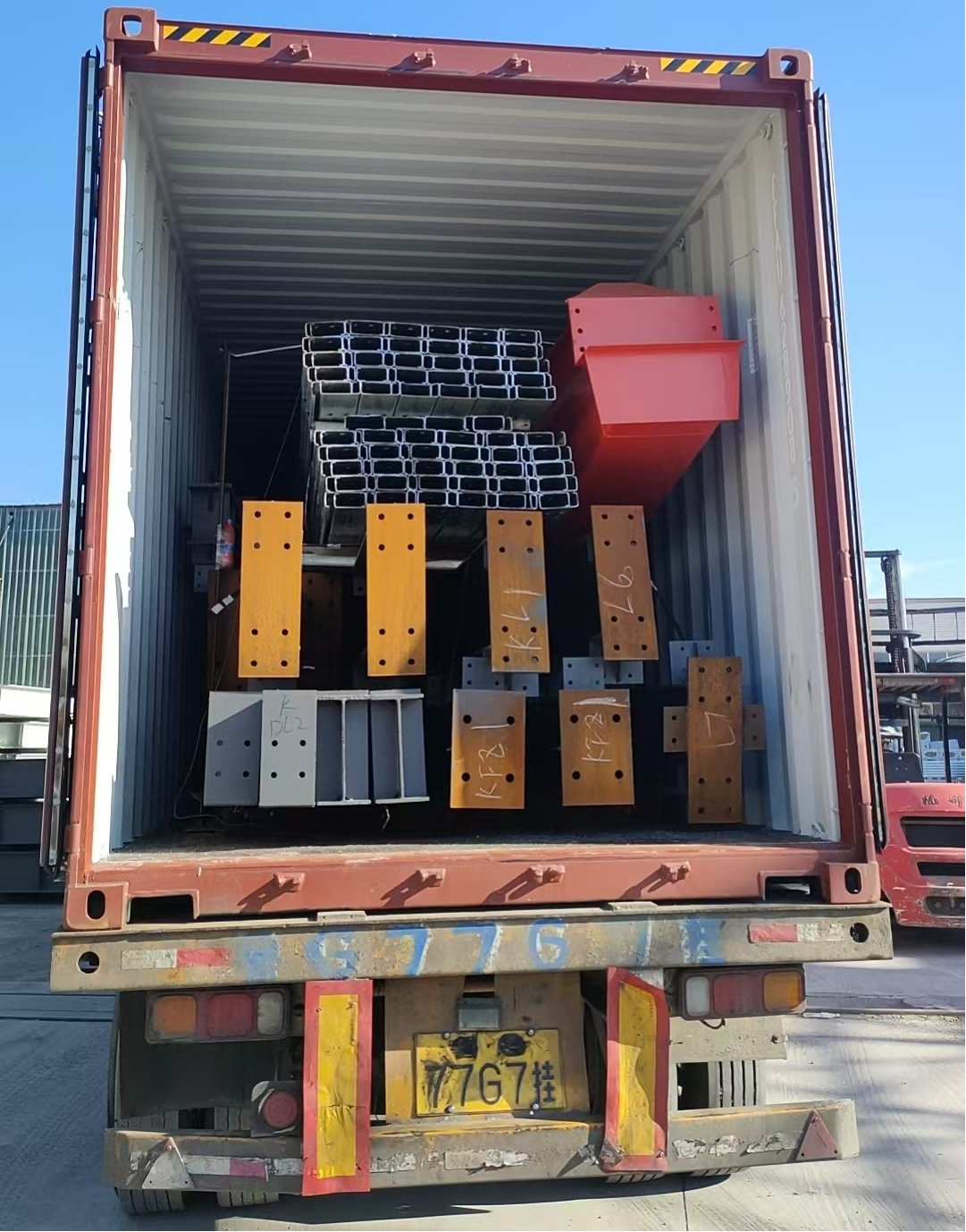

Packing & Delivery

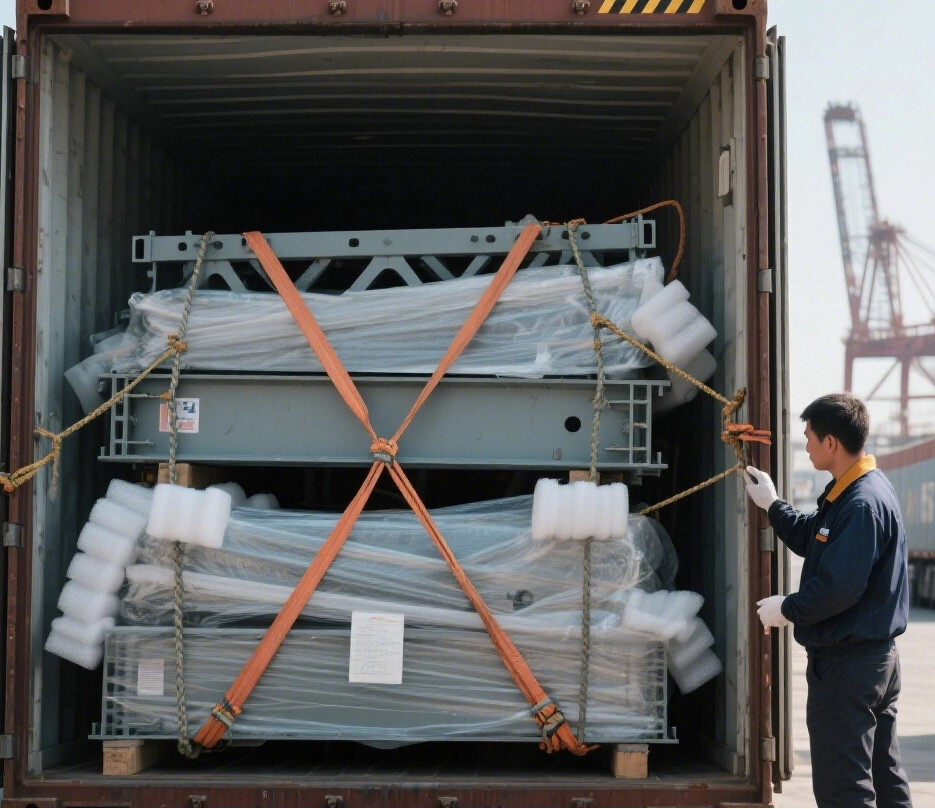

Packaging:
Standard export wooden crates or steel frames.
Anti-rust paper + plastic wrap for protection.
Shipping:
FOB Qingdao/ CIF / EXW terms supported.

Delivery time: 15-30 days after order confirmation.
